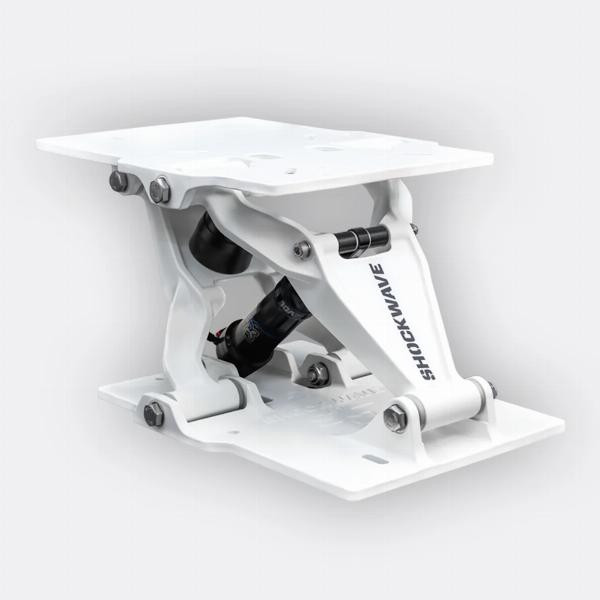

Shockwave S5-AL Lightweight Seat Suspension Pedestal - White (with pump)
The Shockwave S5-LW lightweight marine suspension base is Shockwave's entry-level recreational suspension option. Designed to mitigate the shock of wave impact in lighter conditions on freshwater lakes or on the ocean.
Made from anodised A360 cast aluminum that has been powder coated and fitted with stainless steel hardware, the S5-LW suspension base utilises a three-link forward action suspension design.
Fitted with an X-Fusion O2 PRO R air sprung shock with adjustable rebound, suspension travel is 100mm vertical and 38mm forward, mitigating deceleration associated with wave impact.
- Designed and manufactured in Canada
- Custom tuned and valved marine X-Fusion O2 R, air spring and shock with adjustable rebound
- Surge protection: Suspension travel is 100mm vertical and 38mm forward, mitigating deceleration associated with wave impacts
- 3-Link Forward Action
- Anodised A360 Cast Aluminum, 304 SS Hardware, Powder Coated
- Minimal parts count and simple construction
- Easy to mount and adapt to current seating
Spring and Shock - X-Fusion O2 R air spring shock with adjustable rebound
Construction - Anodised A360 cast aluminum, 316 SS hardware, powder coated
Suspension Design - 3-Link forward action
Overall Performance - Better in light to moderate seas
Warranty - Two year – limited warranty
Cabin Use - Yes. When used in a cabin in saltwater, clean with fresh water and coat with LPS1 or SaltAway frequently.
Outside Deck Use - Fresh water or cabin use, limited saltwater. If using the on an outside deck in saltwater, clean with fresh water and coat with LPS1 or SaltAway after each use.
Size (H x W x L) - 218mm x 306mm x 363mm
Weight - 7.9 kg
Weight Capacity - Up to 113.4 kg
NOTE: The SHOCKWAVE Shock Pump is included for set up of the shock absorber.
| Part Number | Colour | Shockwave SKU | Other Part No. |
|---|---|---|---|
| SHW-SW-05026-W | Gloss White | SW-05026-W | 183051 |
